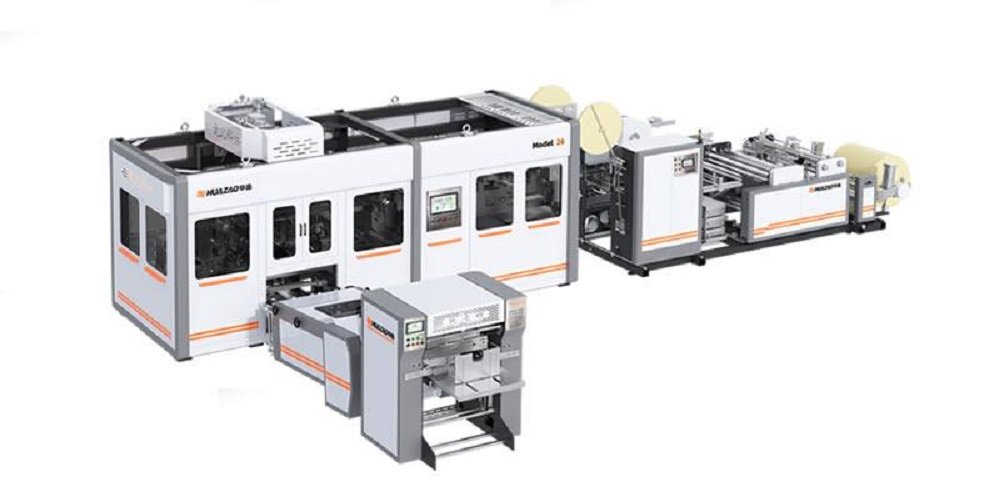

Non Woven 3D Laminated Box Bag Making Machine – High Speed MODEL-26

BOTTOM STICKER SPECIFICATION RANGE

BAG TYPE	Dual use insulated bag and three-dimensional bag
BOTTOM SUPPORT METHOD	Vacuumadsorption system(without bottom support)
COLOR CODETRACKING	Handheld color codes and knife color codes
BAG MOUTH CORRECTION	Innovative dynamic detection and correction
CONTROL SYSTEM	UK Cui Ou motion controller
MAN-MACHINE INTERFACE	Ful guided screen
CONTROL MODE	Whole machine EtherCAT bus control
REMOTE MODULE	Mobile app interconnection
APPLICABLE RAW MATERIALS	Non wven fabric,coated non-woven fatric,cxoated woven material
MATERIAL THICKNESS	65-120g/m2
SPEED	70-120 pic/min
BAG HEIGHT	Height 180-450mm
BAG FRONT WIDTH	Width Standard 180-540mm: small 100-480frn
BAG SIDE WIDTH	Gusset 80-220mrn
FEED WIDTH	550-1160mm
LOOP LENGTH	Handle 320-620 mm
MAXIMUM UNWINDING DIAMETER	The diameter of the roll material at the feeding position is 1.30 meters
MOLD CHANGE TIME	20-40min
AIR PRESSURE REQUIREMENTS	1.2m3/min(air compressor above 7.5kwl)
INSTALLED POWER	65kw
PRODUCTION POWER:	15kw
MACHINE DIMENSIONS	L12 W 2.2 H2.6
MACHINE WEIGHT	10000KG

Main Technical Data:

1) Suitable Material: Non Woven fabric, Coated Non Woven, Fabric, Coated Woven material;
2) Fabric GSM: 65-120g;
3) Productivity: The Efficient Production is more than 70-120 PCS/MIN:
4) Bag Height: 180-450mm:|
5) Bag Front Width: Standard:180-540mm, Small: 100-480mm:
6) Bag Side Width: 80-200mm;
7) Material Roll Width: 550-1160mm;
8) Handle Length: 320-620 mm;
9) Material Feeding Roll Diameter: 1300mm
10) The machine has high efficiency, stable production, excellent finished products.

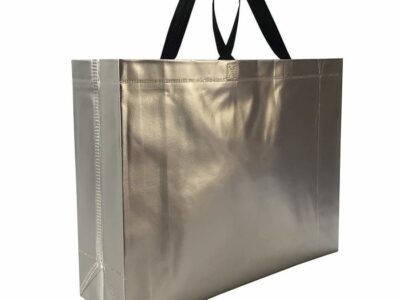

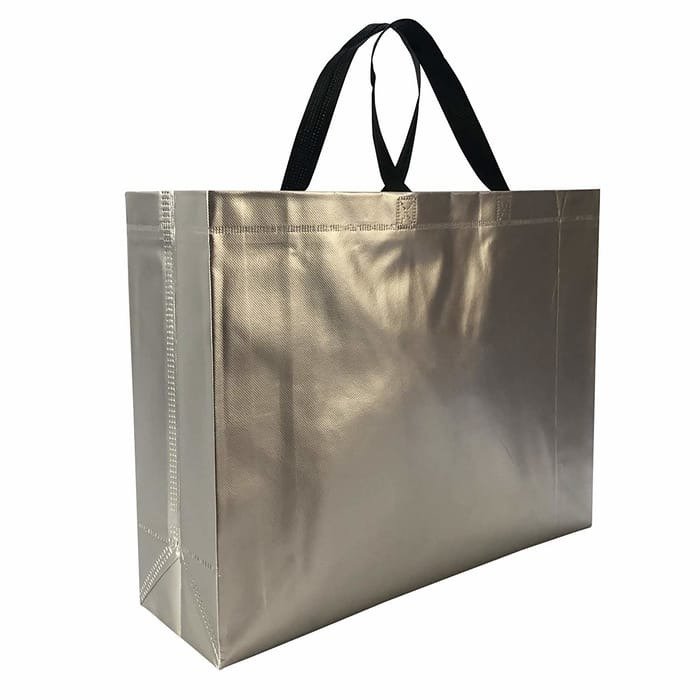

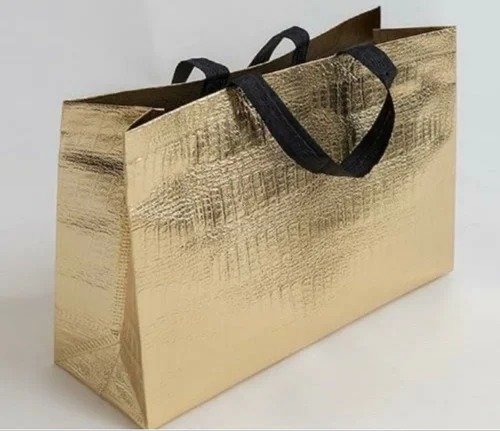

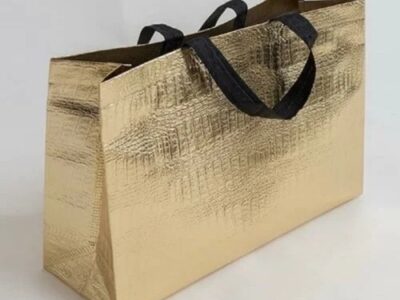

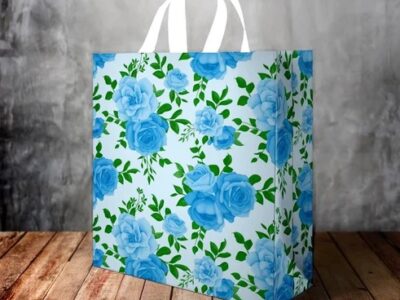

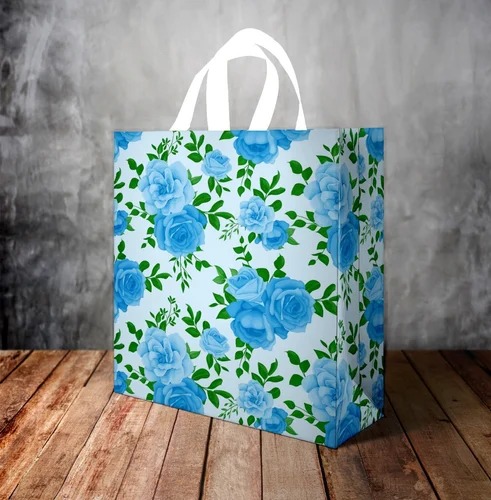

11) Suitable for both thermal insulation bag and usual bag.
12) Punched by motor, Dual color code tracing.
