| Model | 16×22 | 18×24 |
| Max.paper size | 560*400mm | 620*450mm |
| Min.paper size | 150*200mm | 620*450mm |
| Max.printing area | 550*375mm | 600*440mm |
| Paper weight | 28-250g/㎡ | 28-250g/㎡ |
| Printing speed | 2000-7000sheets/hour | 2000-7000sheets/hour |
| Plate size | 560*420mm | 610*485mm |
| Ink roller | 14pieces(3 ink form rollers) | 14pieces(3 ink form rollers) |
| Total power | 1.3KW | 2.75KW |
| Paper feed mode | Suction cross feed | cross feed with adhesive tape |
| Register device | Wheel-type side pull guide | Wheel-type side pull guide |
| Moistening mode | water | water |
| Power supply | 220V/50HZ | 220V/50HZ |
| Package size | 1800*1100*1350mm | 2050*1000*1600 |
| Total weight | 750kg | 900kg |
Offset Printing Machine 1 to 4 Colour
Description

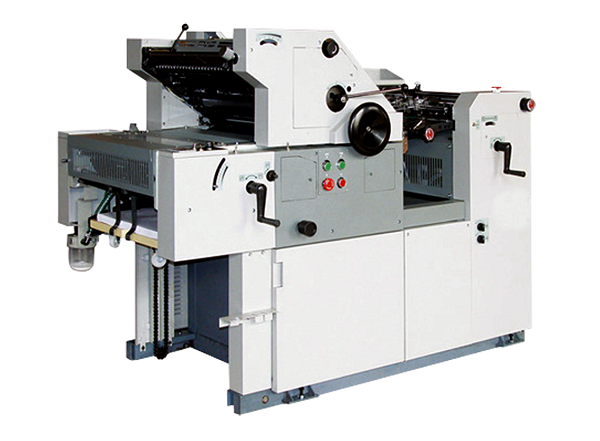

Offset Single Color Printing Machine 16x22 and 18x24

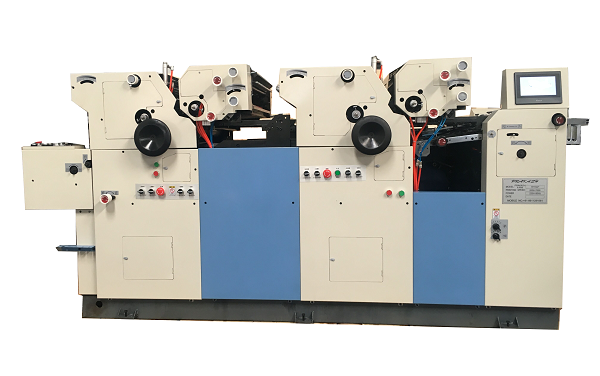

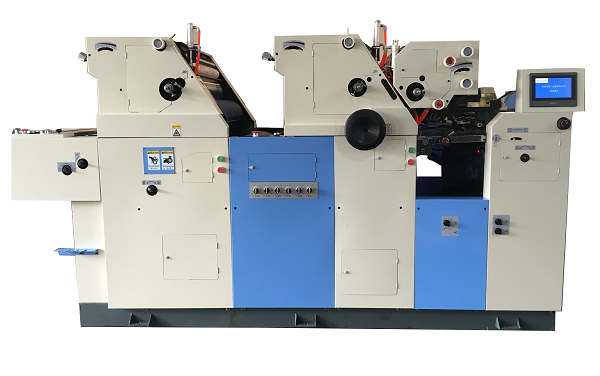

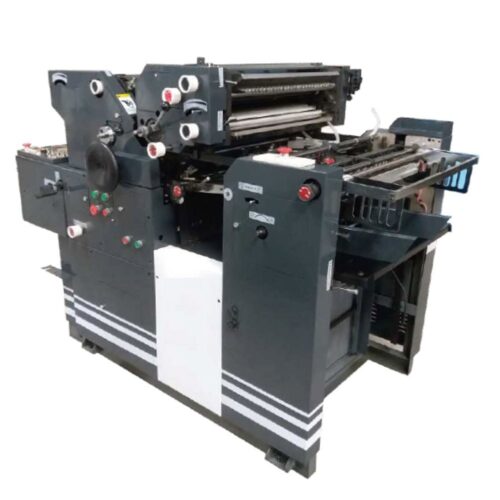

Two Color Satellite Model Offset Printing Machine 16x22 and 18x24
| Model | 16X22 | 18X24 |
| Max.paper size | 560*400mm | 620*450mm |
| Min.paper size | 150*200mm | 180*260mm |
| Max.printing area | 550*375mm | 600*440mm |
| Paper weight | 28-250g/㎡ | 28-250g/㎡ |
| Printing speed | 2000-8000sheets/hour | 2000-8000sheets/hour |
| Plate size | 560*420mm | 610*485mm |
| Ink roller | 16pieces(3 ink form rollers) | 16pieces(3 ink form rollers) |
| Total power | 1.3KW | 1.3KW |
| Paper feed mode | Suction cross feed | Suction feed with adhesive tape |
| Register device | Wheel-type side pull guide | Wheel-type side pull guide |
| Moistening mode | water | water |
| Power supply | 220V/50HZ | 220V/50HZ |
| Package size(mm) | 1810*1110*1470 | 2050*1000*1600 |
| Total weight | 950kg | 1000kg |
HT 18×24 THREE COLOUR OFFSET PRINTING MACHINE(SATELLITE MODEL)WITH TOUCH SCREEN AND PNEUMATIC
| Model | APSO-1824 |
| Max.paper size | 620*450mm |
| Min.paper size | 180*260mm |
| Max.printing area | 600*450mm |
| Paper weight | 28-250g/㎡ |
| Printing speed | 2000-8000sheets/hour |
| Plate size | 620*485mm |
| Ink roller | 16pieces(3 ink form rollers) |
| Total power | 2.75KW |
| Paper feed mode | cross feed with adhesive tape |
| Register device | Wheel-type side pull guide |
| Moistening mode | water |
| Power supply | 220V/50HZ |
| Package size（mm) | 2950×1150×1780 |
| Total weight | 1813kg |

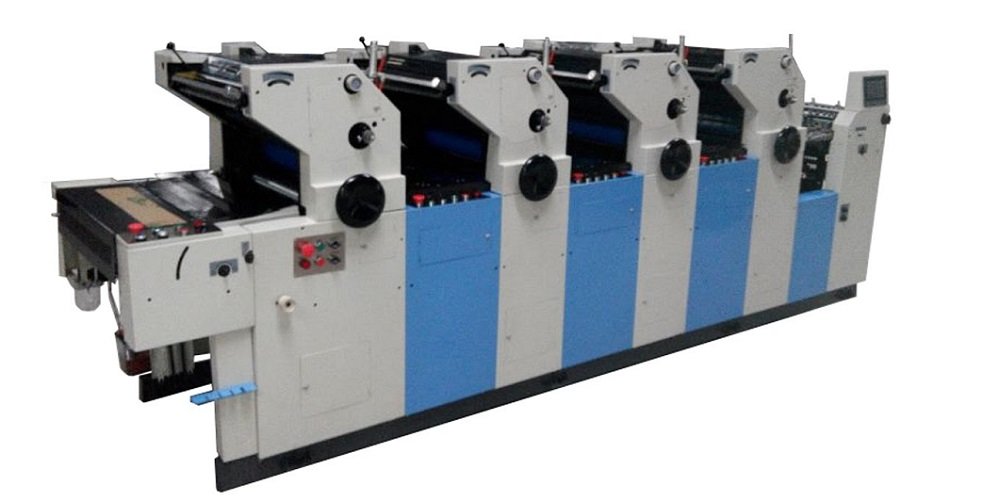

HT 18×24 FOUR COLOUR OFFSET PRINTING MACHINE(SATELLITE MODEL)WITH TOUCH SCREEN AND PNEUMATIC
| Model | APSO-1824 |
| Max.paper size | 620*450mm |
| Min.paper size | 180*260mm |
| Max.printing area | 600*450mm |
| Paper weight | 28-250g/㎡ |
| Printing speed | 2000-8000sheets/hour |
| Plate size | 620*485mm |
| Ink roller | 16pieces(3 ink form rollers) |
| Total power | 2.75KW |
| Paper feed mode | cross feed with adhesive tape |
| Register device | Wheel-type side pull guide |
| Moistening mode | water |
| Power supply | 220V/50HZ |
| Package size（mm) | 3250×1150×1780 |
| Total weight | 2600kg |
