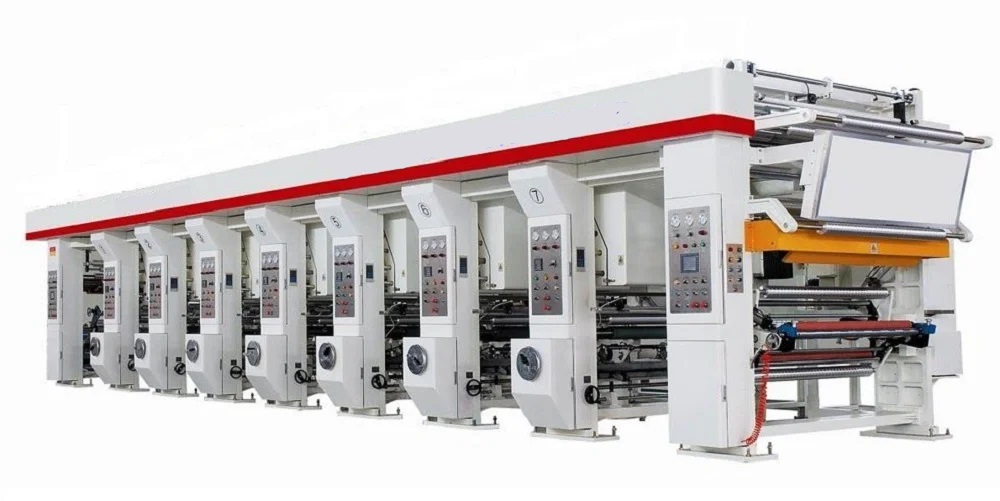

Roto Graviour Printing Machine 4-10 Colour

This machine from operate surface, the station turn from right to left is: unwinding, first color station to eight color station, rewinding. And electrocity system, cylinder drive part. Options: reverse printing structure

• Every control madule of the automatic color register system is equipped with micro- processor and can correct the deviation ofcolor register quickly and accurately.
• Turret un/rewinding section, non-stop material splicing.
• Unwinding and in-feed section with inverter speed control system and close loop tension control system.
• Rewinding and out-feed section with inverter speed control system and close loop tension control system.
• Closed oven and independent heating hot air blowing system, automatic constant temperature system.
• Pneumatic impressing system and pneumatic doctor blade system Diaphragm-type pneumatic ink auto circulating system
• Inflatable air shaft for unwinding / rewinding material loading
• Printing linear speed and meter counting display
• Shaft less printing cylinder loading device, printing cylinder is fixed by shaft-less air chuck.
• Equipped with ink distributing roller to tranfer ink”
