Parameters
| Model | Power supply | Effective width | Dimensions | Net weight |
| APQ-1000 | 7KW 380V 3 phase (220V) | 1000mm
40 Inch |
5×1.5×1.8m | 1000KG |
| APQ-1600 | 7KW 380V 3 phase (220V) | 1600mm
64inch |
5x2x1.8m | 1500KG |
| APQ-1800 | 8KW 380V 3 phase (220V) | 1800mm
72 inch |
5×2.3×1.8m | 1800KG |
| APQ-2400 | 8KW 380V 3 phase (220V) | 2400mm
96 inch |
5×2.8×1.8m | 2300KG |
| APQ-3000 | 9KW 380V 3 phase (220V) | 3000mm
120 inch |
5×3.5×1.8m | 3000KG |
Configuration
This machine features the latest ultrasonic control box design that provides strong and stable power. It is suitable for longtime continuous operation.
Built-in multi-channel ultrasonic protection system to ensure safe and stable operation of the machine.

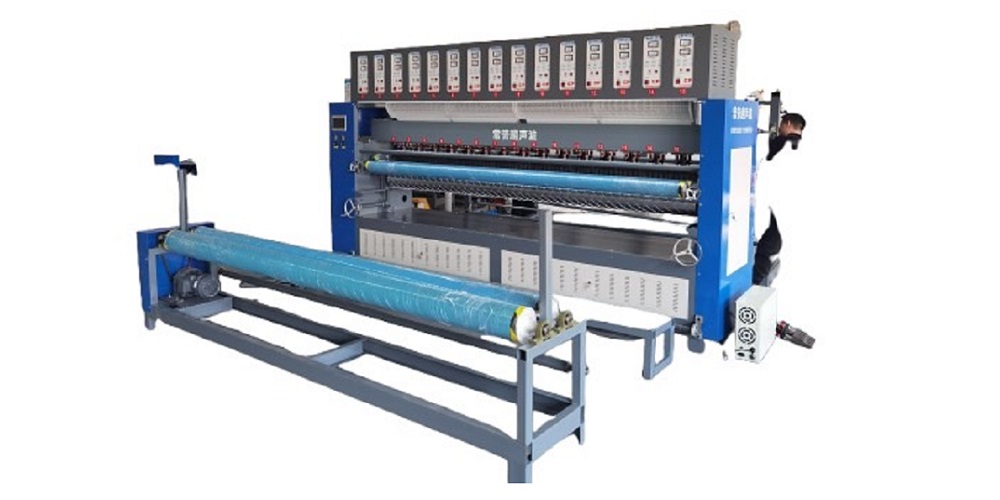

The whole machine is comprised of an embossing compound mainframe, ultrasonic control cabinet, finished products rewinding machine, and bracket for storing fabrics.
Features
The sewing quilting machine is equipped with a professional level adjuster for pattern roller, which can quickly and freely correct its levelness.
Avoid the trouble of needles and threads of traditional sewing through the use of unique no-thread quilting technique.
The quilting width varies from the minimum value to 3000mm, and any pattern can be created simply by replacing the pattern roller.
The service life of the high-tech handler horn is four times longer than that of the traditional thin horn.
Using an imported ultrasonic transducer with powerful sound wave, the quilting effect completed in a high level of quality.
Simple operation, high quilting strength, high production efficiency.
