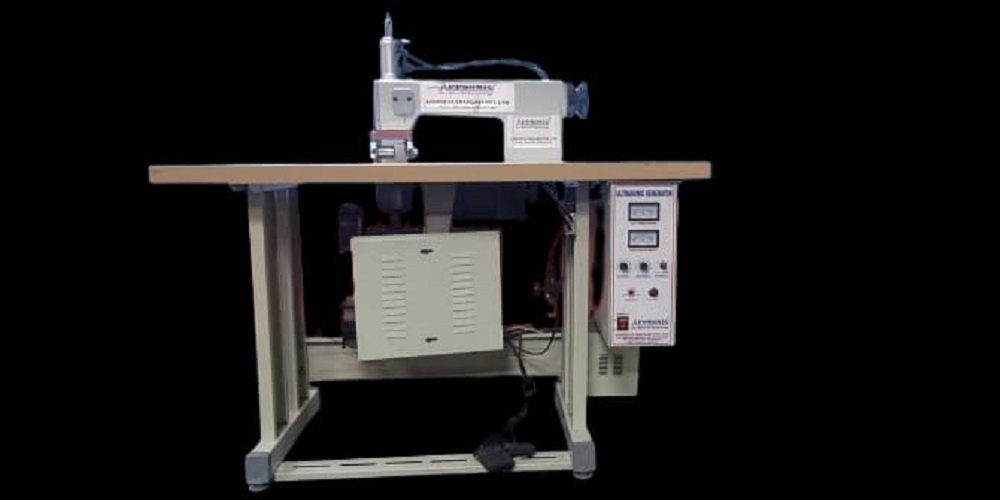

| Item Name | Ultrasonic Sewing Machine | Ultrasonic Sewing Machine | Ultrasonic Sewing Machine | Ultrasonic Sewing Machine | Ultrasonic Sewing Machine |
| Model | APS-20-SM | APS-20-SMP | APS-20-DMP | APS-20-100 DMP | APS-20-SPM |
| Frequency | 20Khz | 20Khz | 20Khz | 20Khz | 20-15Khz |
| Power Supply | 220V / 50-60Hz | 220V / 50-60Hz | 220V / 50-60Hz | 220V / 50-60Hz | 220V / 50-60Hz |
| Input Power | 1800 Watt | 1800 Watt | 1800 Watt | 1800 Watt | 1800-2600 Watt |
| Horn Size | 70mm | 70mm | 70mm | 100mm | 150-300mm |
| Roller Size – Maximum | 60mm | 60mm | 60mm | 85mm | 125-275mm |
| Production | 0-20 Mtr. P.M. | 0-20 Mtr. P.M. | 0-20 Mtr. P.M. | 0-20 Mtr. P.M. | As per Motor |
| Weight | 60 Kgs | 70 Kgs | 90 Kgs. | 110 Kgs. | As per Machine |
| Machine Dimension | 1270 X 650 X 1300 | 1270 X 650 X 1300 | 1270 X 650 X 1300 | 1270 X 650 X 1300 | As per Machine |
Feature:
1.Use ultrasonic energy to cut, weld, seal, seam
2.Eliminating traditional needle and thread.,reduce material cost and more high speed
3.No dissipated edge, wrinkle and shrinkage.,Can print color on the laces with colored paper.
4.Continuous working for mass production
5.No smoke, spark and danger during operation
6.Easy operation realizes lowest labor cost;double motors structure
7.Accurate and durable alloy rollers are designed by computer aid made with
Use for :

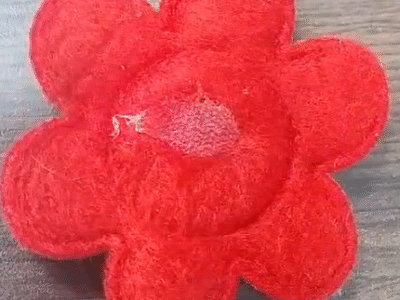

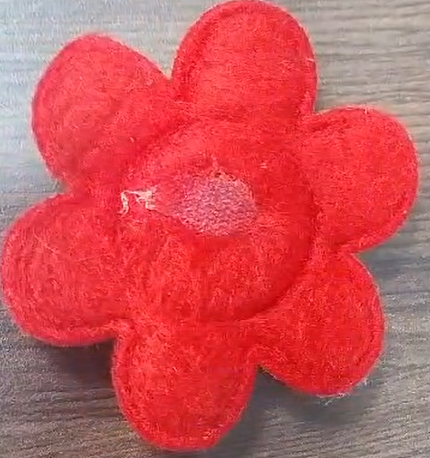

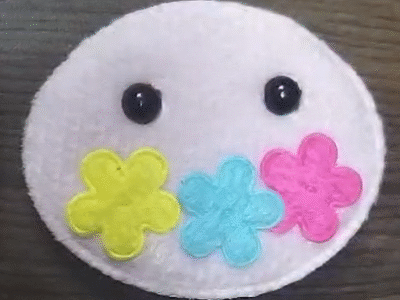

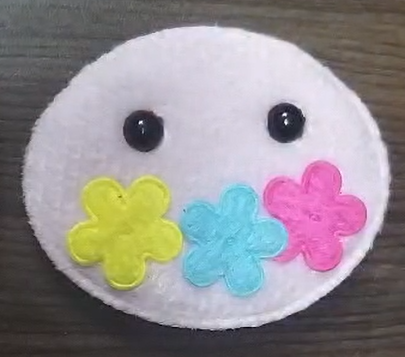

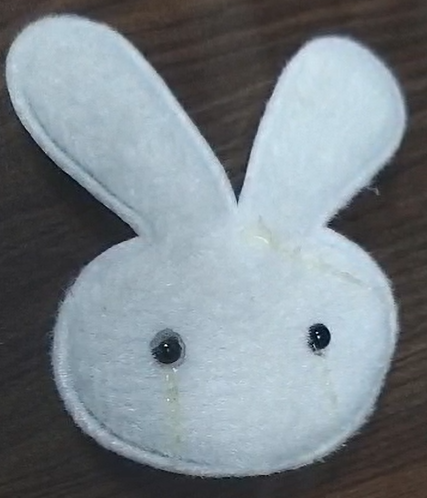

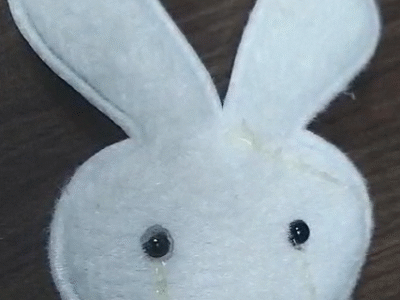

- Soft Toys Fabric Cut, Weld, Seal, Seam

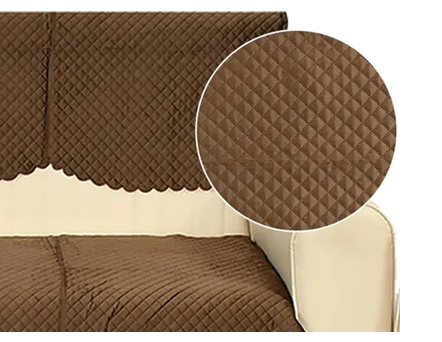

- Soft Panel Fabric Cut, Weld, Seal, Seam

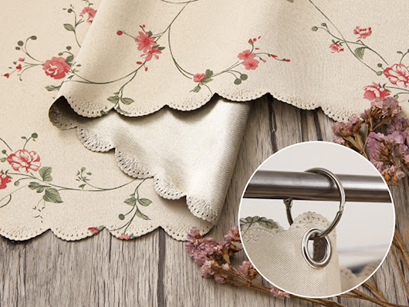

- Curtain Fabric Cut, Weld, Seal, Seam

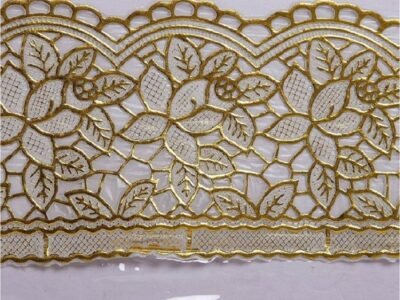

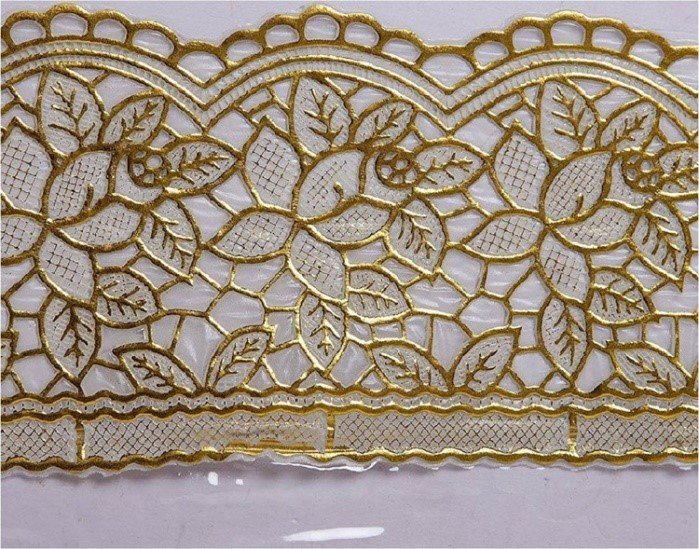

- Table Mat Golden Film & PP Sheet Embossing, Cut, Weld, Seal, Seam

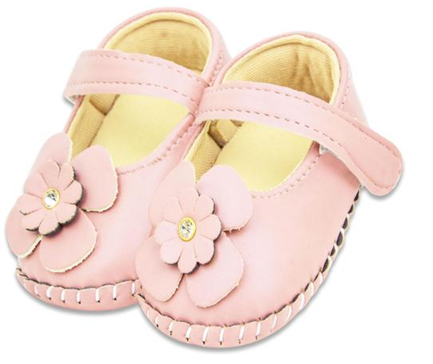

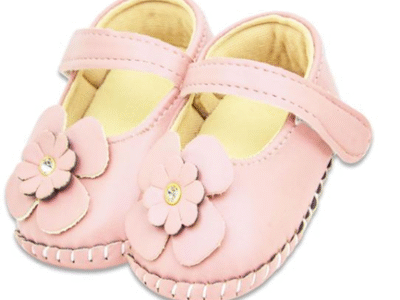

- Rexin Cut, Weld, Seal, Seam for Ladies Footwear
- Rexin Cut, Weld, Seal, Seam for Ladies Hand Bags
- Rexin Cut, Weld, Seal, Seam for Ladies Garments
- Non Woven Bags Cut, Weld, Seal, Seam
- Kids Garments Fabric Articles Cut, Weld, Seal, Seam
- Medicle Gown Non Woen Fabric Cut, Weld, Seal, Seam
- Appran Gown Non Woven Fabric Cut, Weld, Seal, Seam and Many more industries use this application
- Sanitary Pad Making
