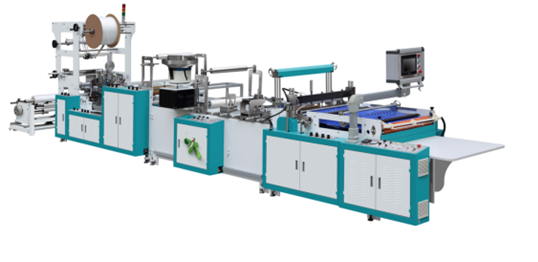

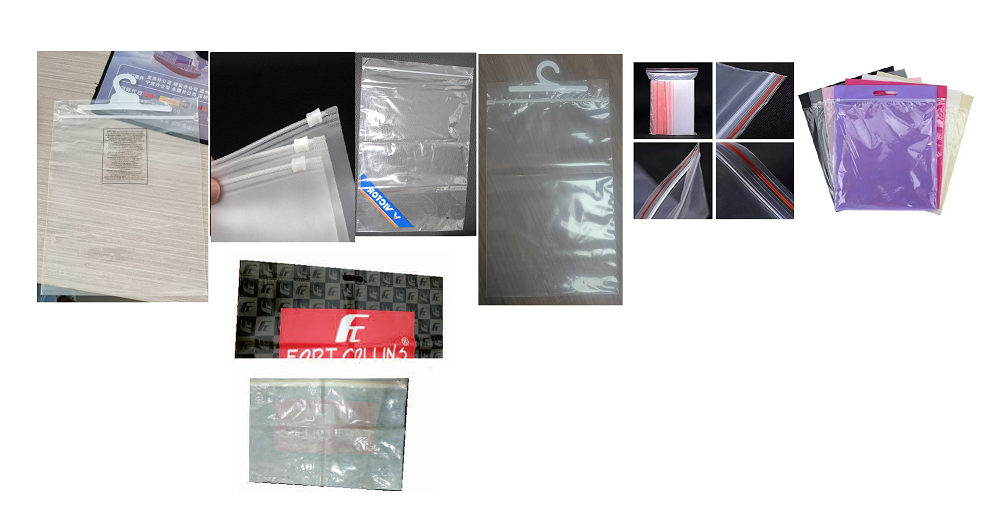

Technical Parameter
| Model | APZ-800 | |
| Material | LDPE | |
| Output | 30-150PCS/min | |
| Cutting Length | ≤750mm | |
| Cutting Width | 100mm-700mm | |
| Unwinding Dia. | ≤800mm | |
| Unwinding Width | ≤1600mm | |
| Voltage | AC220V/AC380V | Notice when special |
| Air Compressor | 0.4Mpa-0.6MPa | |
| Cutting Precision | ≤0.2mm | |
| Color Accuracy | ≤0.2mm | |
| Color Range | 0-9mm(can set) | |
| Temperature | 0℃-600℃ | |
| Discharge Motor | 0.55kW | |
| Main AC Motor | 1.5kW | |
| Traction Servo Motor | 1.5kW | |
| Traction Inverter | 0.75kW*3 | |
| Ultrasonic | 1.5kW | |
| Heat | 4kW | |
| Other Power | 0.5kW-3.5kW | Depends on order |
| Total Power | Max. 20 kW | |
| Overall Dimension | 7800×1400×1900 mm | |
| Weight | 2600KGS |
II．Machine Configuration & Parameters
- Unwinding Unit
Structure: Horizontal position (Magnetic powder brake device)
Control: independent tension control
Guide detection way: Independent photocell control
- Film Drawing Unit
Structure: Pneumatic rubber rollers system and synchronous feeding device.
Drive: Digital AC servo motor system
Transmission: Synchronous belt & pullet drive, servo speed ratio: 1:2
Control way: PLC centering control
Detection way: Photocell & proximity switch control
- Main Transmission Unit
Structure:Crank rocker & main shaft & double eccentric gear linear bearing guide system.
Drive: Digital AC servo motor system
Transmission: Synchronous belt & pullet drive, servo speed ratio: 1:2
Control way: PLC centering control
- Heat Cutting Device
Structure: two blades (double line and single line blade) for changing, heat proof, and fast replacement.
Heating Way: heating tube heat
Regulation Way: left & right, Up & down, can adjust independently.
- Temperature Control Device
Detection Way: Thermocouple
Control Way: temperature controller, PID regulate, solid state relay drive.
Temperature: 0-400℃.
Temperature Test Point: the centre of heating blade
Mode: ① Automatic computer length control, Precision≤0.5mm
② Reflective photosensor trace and regulate, Precision≤0.5mm
Photocell Trace Scope: 0-20mm(can setup)
Revise and compensate scope: ±1-±10mm(can setup)
Location and revise way: Servo motor controlled by return signal of computer.
Complement equipment(prepare by user)
Power: 3 phases: 380V，50Hz; 1 phase:220V，50Hz
Air Supply: Supplementary
